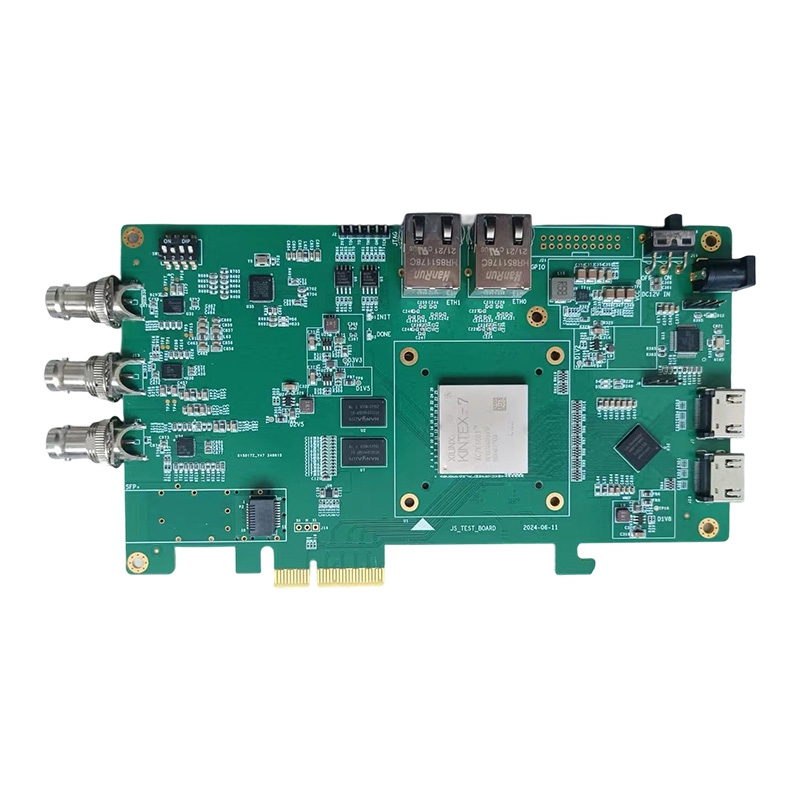

Video interface:
2 * HMDI supports video formats of 4kp60 and below.
1 * SDI 12G input supports video formats up to 4kp60.
2 * SDI 12G output supports video formats up to 4kp60.
Data interface:
1 * SFP fiber optic interface, communication speed up to 10Gbps, supports uncompressed transparent transmission of video data.
2 * Gigabit Ethernet, capable of completing Ethernet transmission.
PCIE 4x Gold Finger, used to communicate with computers or other devices.
PCIE 4x Gold Finger, used to communicate with computers or other devices.
other:
4 * dip switch, providing user interactive control.
1 * jtag debugging interface, providing main control debugging simulation.
2 * 1GB, DDR3 with a total of 2GB and 32 bits.
1 * Power switch.
1 * Clock generator, providing configurable clocks for the main control.
